Szczegóły Produktu:
|
| Nazwa maszyny: | Wytłaczarka próżniowa ED60-2.5 w pełni automatyczna linia do produkcji cegieł glinianych o europejsk | Zdolność produkcyjna: | 7000 bloków na godzinę |
|---|---|---|---|
| Wyciskanie ciśnienia: | Wyciskanie ciśnienia | Moc: | 362 kw (250+90)+(11+11kw) moc płyty dociskowej do gliny 11*2KW |
| Wymiar zewnętrzny: | 7700*2700*3400 mm | Waga: | 23 750 kg |

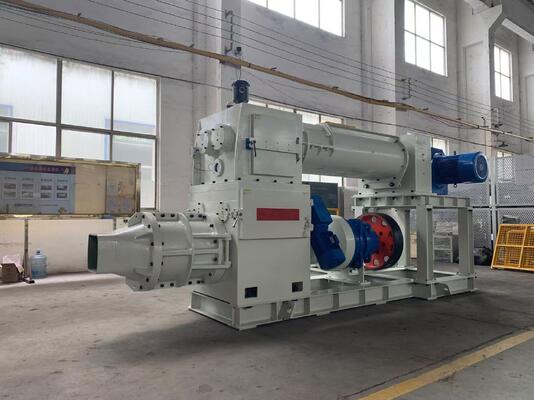

Vacuum Extruder ED60-2.5 full automatic clay brick making line machinery with European design
The vacuum extruder of description:
1. Soft Plastic Forming (Moisture Content > 19%):
Extrusion pressure ranges from 2.0 to 2.5 MPa; this method is primarily used for clay or materials with high moisture content.
2. Semi-Hard Plastic Forming (Moisture Content 16%–19%): extrusion pressure can be reached to 3.0 MPa, medium hardness clays.
3. Hard Plastic Forming (Moisture Content < 13%–16%): Pressures can reach up to 4.0 MPa, high-strength extrusion for low-moisture products such as bricks, tiles, and ceramics. for the high extrusion it is using for one-time setting, which is primarily utilized for shale and coal gangue.
The required vacuum level is easily attainable; however, if the vacuum becomes excessively strong, it may be necessary to partially release the vacuum, as materials with excellent plasticity can sometimes exhibit stickiness.
The ED60-2.5 clay bricks blocks vacuum extruder of technical parameters:
| No. | Model | ED60-2.5 |
| 1 | Production capacity | 7,000 blocks/hour, brick size 200x120x30 mm |
| 2 | Extruding pressure | 2.5Mpa |
| 3 | Vacuum degree | ≤-0.092Mpa |
| 4 | Spiral diameter |
500mm for upper mixing part 600mm for lower extruding part
|
| 5 | Rotate speed of extruding |
26rpm/min for upper mixing part 18.5rpm/min for lower extruding part |
| 6 | Parameters of clay-press plate |
Swing diameter: 500mm rotate speed: 25rpm/min |
| 7 | Rated output torque of reducer |
117KN.m for upper mixing part 354KN.m for lower extruding part |
| 8 | Power | 362 kw (250+90)+(11+11kw) clay-press plate power 11*2KW |
| 9 | Outside dimension | 7,700*2,700*3,400mm |
| 10 | Weight | 23750kg |
| 11 | Vacuum pump | 3,00m3/h |
| 12 |
Vacuum extruder 1. Material for the whole structure of the extruder: Carbon Steel 2. Brand for reducer of clay-press plate: SEW 3. Brand for reducer of upper mixing and lower extruding part: Zhejiang Tongli 4. Brand of three-phase asynchronous motor: ABB 5. Brand of bearing: SKF
Spare brand for electric controlling box: 1. Brand of low-voltage electrical component: Schneider 2. Brand of voltmeter and ammeter: DELIXI 3. Soft Starter Brand: Schneider; 4. Voltmeter & Ammeter Brand: DELIXI; 5. Electrical Cabinet: GGD;
Package and shipment Full extruder with stretch-wrapping and spares in wooden box |
|

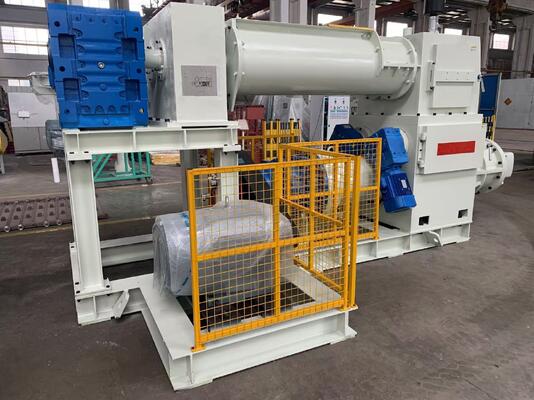

The bricks making factory vacuum extruder with high quality bricks forming machine
We also have other complete sets of automated clay brick making production line equipment to recommend to you:
BBT supply following clay brick production line machinery and equipment :
TCNL series of Chain full steel type box feeder
TWGD series of double shaft mixer
GS series of roller crusher
TRA series of double tooth roller crusher
TWJH series of front grid extruding mixer
TWPM series of wet pan mill
QTQG series of cutter
EV series of vacuum extruder
Robot setting machine
Brick machine spare parts
BBT provide full automatic clay brick making project design, construction and technical supporting.
